Designed for Intel 2nd and 3rd Gen Core processors with modern M.2 NVMe integration, high-definition audio, HDMI+VGA ports, and 3-Year warranty.
Legacy LGA1155 boards were limited to slow mechanical hard drives and SATA cables. The Starex ST-H61 integrates an onboard M.2 NVMe slot, transforming existing Ivy Bridge and Sandy Bridge chips into snappy, modern productivity workstations.

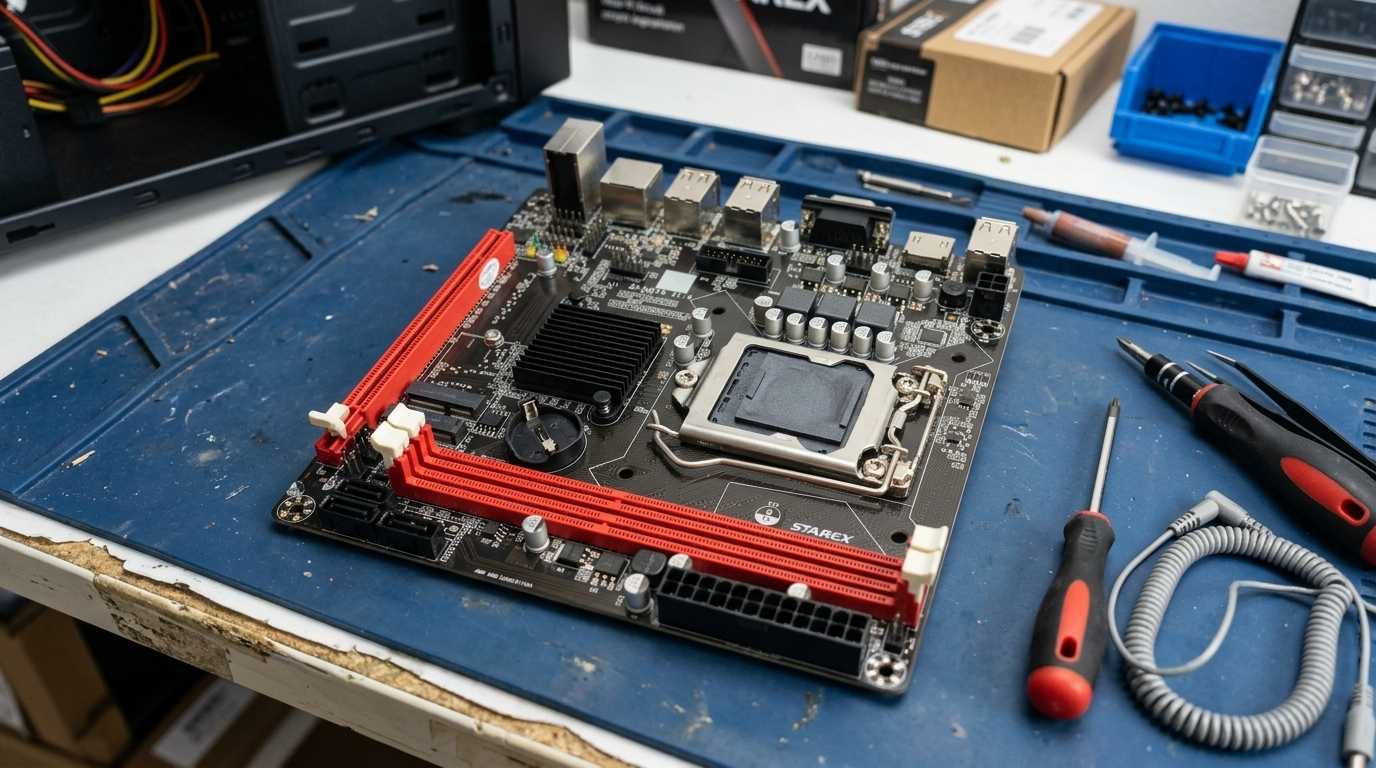

Unlike low-tier replacement motherboards with cheap electrolytic capacitors that bulge or leak, Starex uses 100% solid-state capacitors and ferrite chokes for clean voltage ripple suppression and years of worry-free operation.
Built with premium PCB layers and high-grade soldering to guarantee longevity.

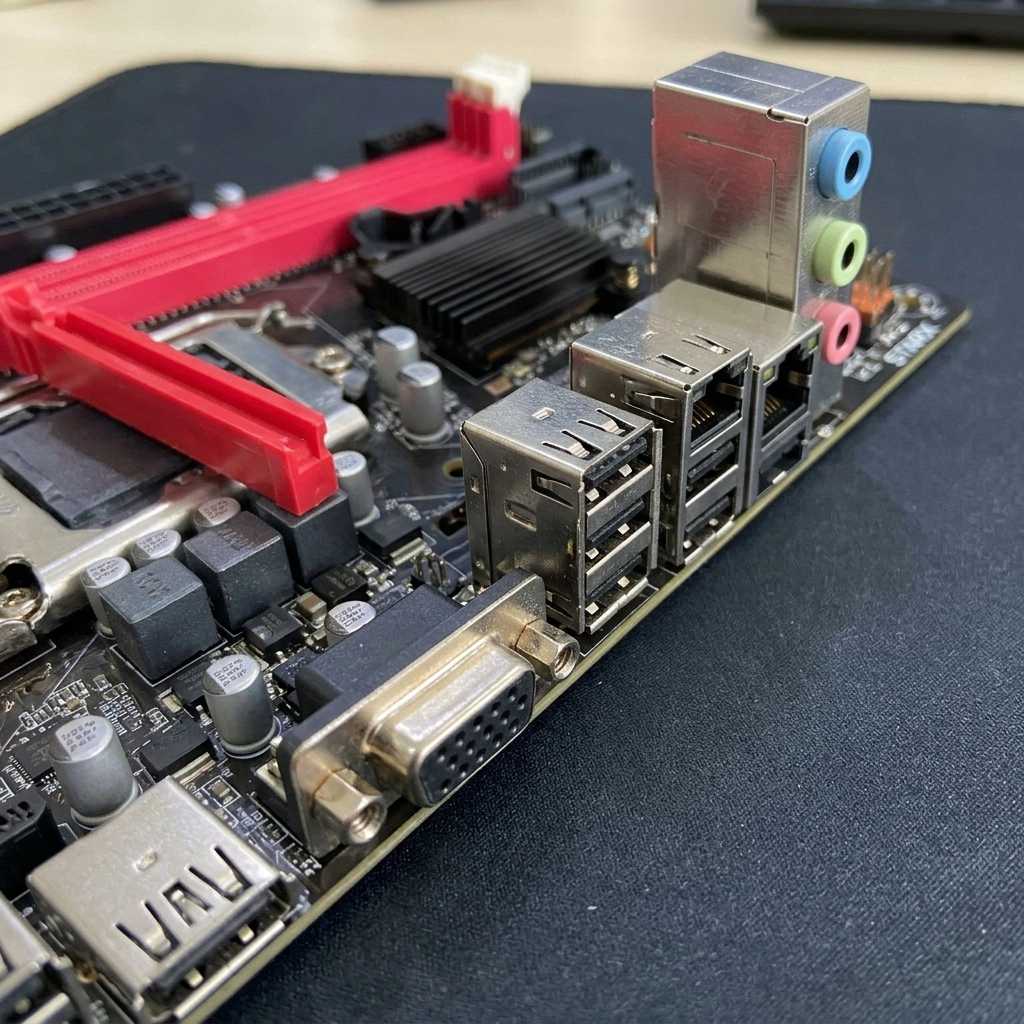

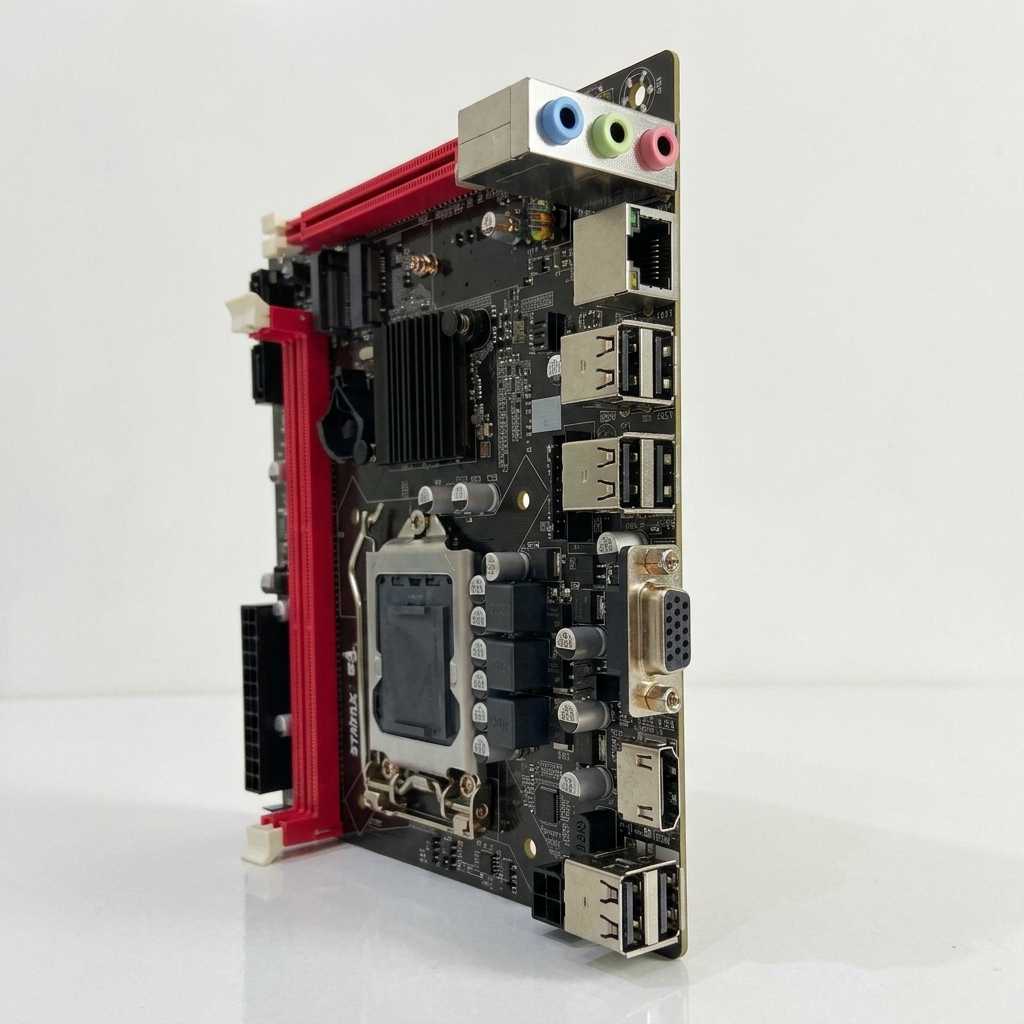

Complete array of USB 2.0, Gigabit LAN, HDMI, VGA, and audio jacks.
Dedicated audio trace isolation blocks electromagnetic noise for clear voice and media.

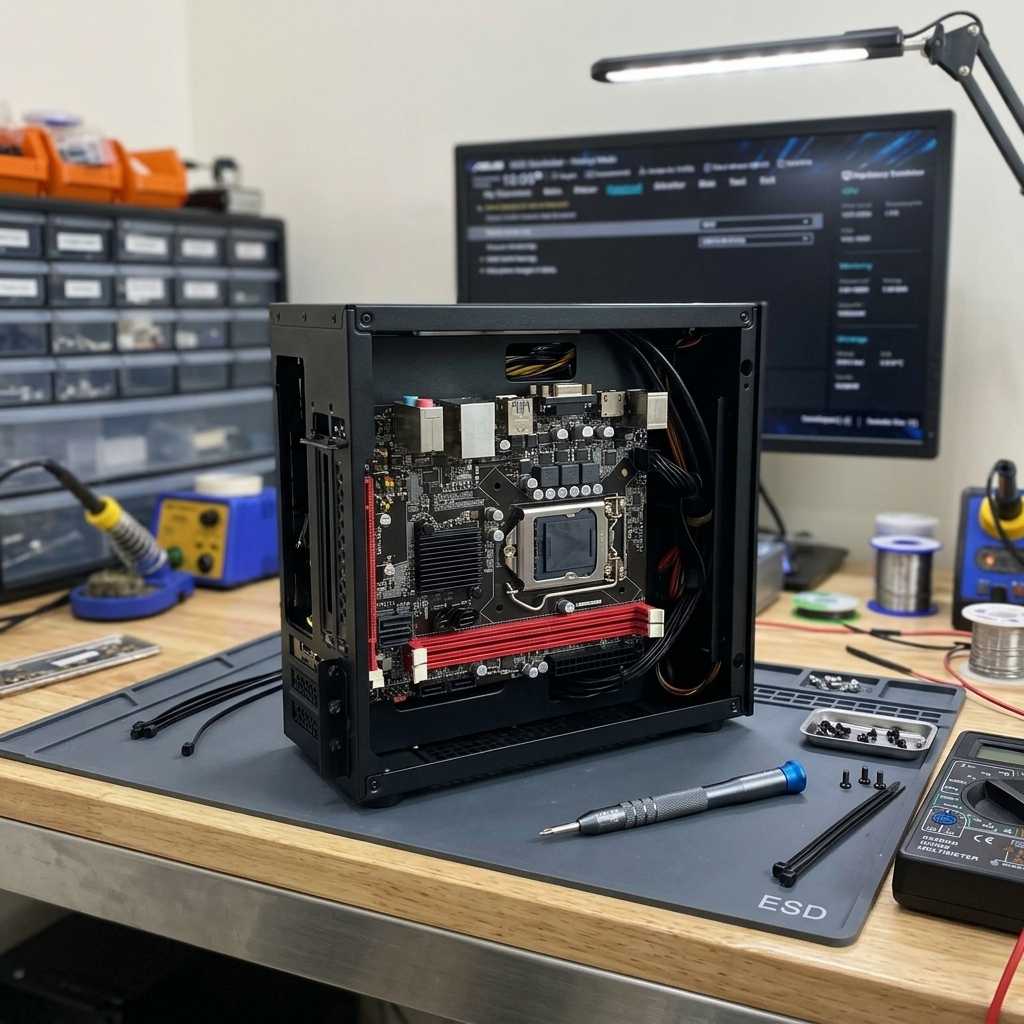

Effortlessly upgrades older commercial towers or builds compact new budget rigs.
Verified parameters and electrical ratings from the official Starex engineering laboratory.
| Brand | Starex |
|---|---|
| Model | ST-H61 (Micro-ATX) |
| CPU Socket | Intel LGA1155 |
| Supported CPUs | Intel 2nd & 3rd Gen Core i7 / i5 / i3 / Pentium / Celeron (Sandy & Ivy Bridge) |
| Chipset | Intel H61 Express |

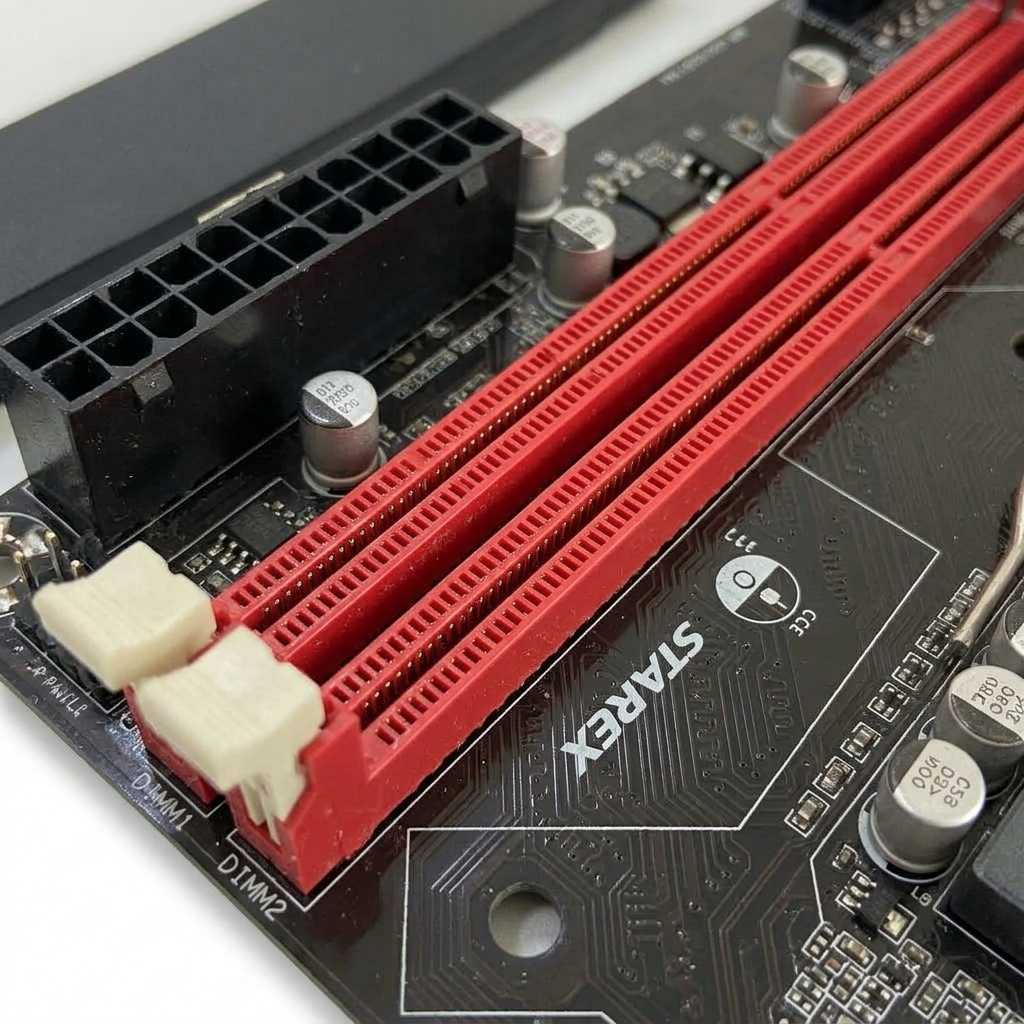

| RAM Slots | 2x DDR3 DIMM, Dual Channel 1600/1333/1066 MHz, Max 16GB |
| M.2 Interface | 1x Onboard NVMe PCIe M.2 SSD Slot (2280) |
| SATA Connectivity | 4x SATA II 3Gb/s Ports |
| PCIe Slots | 1x PCIe 2.0/3.0 x16, 1x PCIe x1 |
| LAN | Realtek 10/100/1000Mbps Gigabit Ethernet |
| Audio | 5.1 Channel High Definition Audio |
| Display Output | 1x HDMI, 1x VGA (Dual Display Support) |
| Warranty | 3 Years Starex Warranty |
Upgrade your system today at PC Garden branches and online store.
